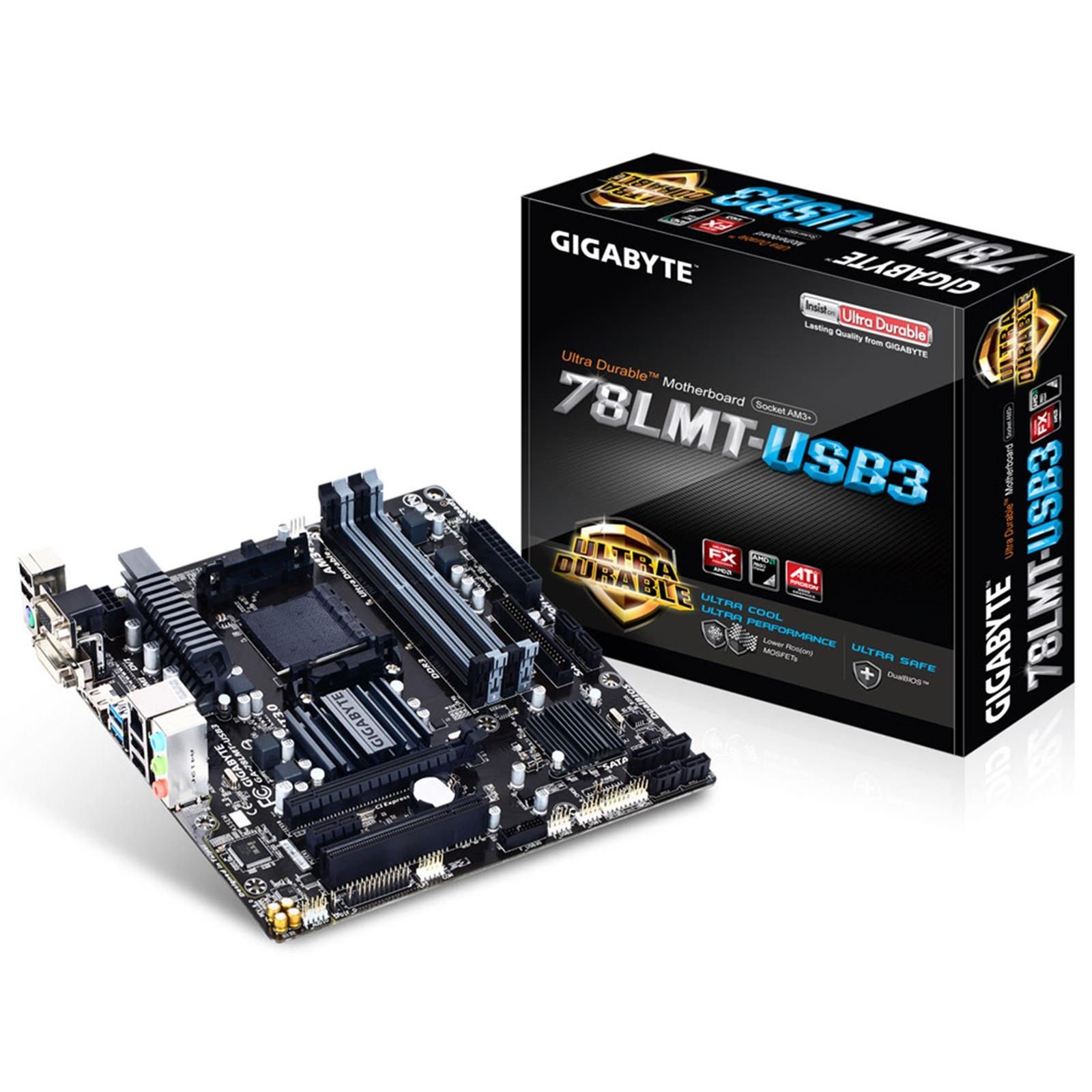

Socket AM3+ supports AMD AM3+ FX-series processors
4+1 Phase Power design for AMD 125W CPU support
Integrated ATI Radeon HD 3000 graphics (DirectX10)
GIGABYTE Ultra Durable™ Technology
HDMI, DVI, D-sub ports for Full HD 1080 contents playback
4 USB 3.0 with superspeed transfer rates of up to 5 Gbps
Hybrid EFI technology with GIGABYTE DualBIOS™
GIGABYTE On/Off Charge™ for USB devices
All solid capacitors design

High Quality Audio Capacitors
GIGABYTE Ultra Durable™ motherboards use high quality Nippon Chemicon ARE series audio capacitors. These professional audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for user experience.

Dedicated Audio Hardware Zone
Separation on the PCB layer protects the board's sensitive analog audio components.
Separate analog and digital ground to protect against Electromagnetic Interference (EMI).

GIGABYTE Ultra Durable
GIGABYTE Ultra Durable™ debuts on GIGABYTE motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.

Ultra Performance
GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan.

Ultra Safe
GIGABYTE DualBIOS
GIGABYTE motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.

Humidity Protection
Humidity can play havoc on a motherboard's circuitry.GIGABYTE's new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.

Specification

CPU
Support for AMD AM3+ processor
Support for AMD AM3 Phenom™ II processor / AMD Athlon™ II processor

Hyper Transport Bus
HyperTransport™ 3.0
Support up to 5200MT/s

Chipset
North Bridge: AMD 760G
South Bridge: AMD SB710

Memory
4 x DDR3 DIMM sockets supporting up to 32 GB of system memory (Note 1)
Dual channel memory architecture
Support for 1600(O.C.)/1333/1066 MHz memory modules

Onboard Graphics
1 x D-Sub port, supporting a maximum resolution of 1920x1200
1 x DVI-D port, supporting a maximum resolution of 1920x1200 (Note 2)
1 x HDMI port, supporting a maximum resolution of 1920x1200 (Note 3)
Support for DirectX 10
Maximum shared memory of 1 GB

Audio
Realtek® ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel (Note 4)
Support for S/PDIF Out

LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots
1 x PCI Express x16 slot, running at x16
1 x PCI Express x1 slot
(All PCI Express slots conform to PCI Express 2.0 standard.)
1 x PCI slot

Storage Interface
1 x IDE connector supporting ATA-133/100/66/33
6 x SATA 3Gb/s connectors
Support for RAID 0, RAID 1, RAID 10, and JBOD

USB
8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 3Gb/s connectors
1 x IDE connector
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper

Back Panel Connectors

1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
2 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)

I/O Controller
iTE® I/O Controller Chip

Hardware Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU/System fan speed control (Note 5)

BIOS
2 x 32 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features
Support for @BIOS
Support for Q-Flash
Support for Xpress BIOS Rescue
Support for Download Center
Support for Xpress Install
Support for EasyTune (Note 6)
Support for Smart Recovery2
Support for Auto Green
Support for ON/OFF Charge
Support for Q-Share

Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
